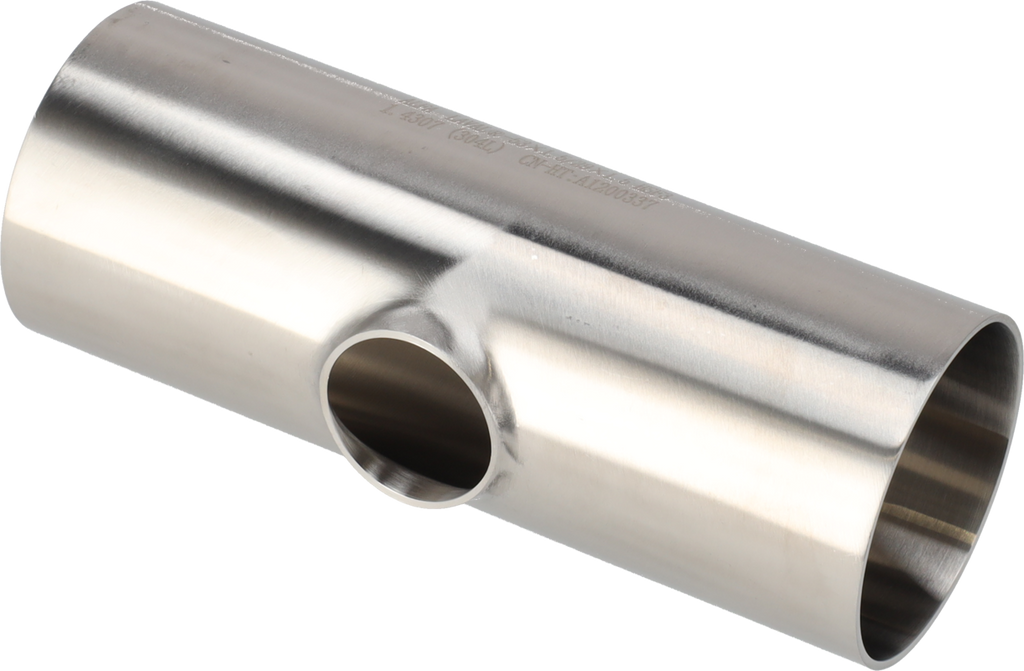

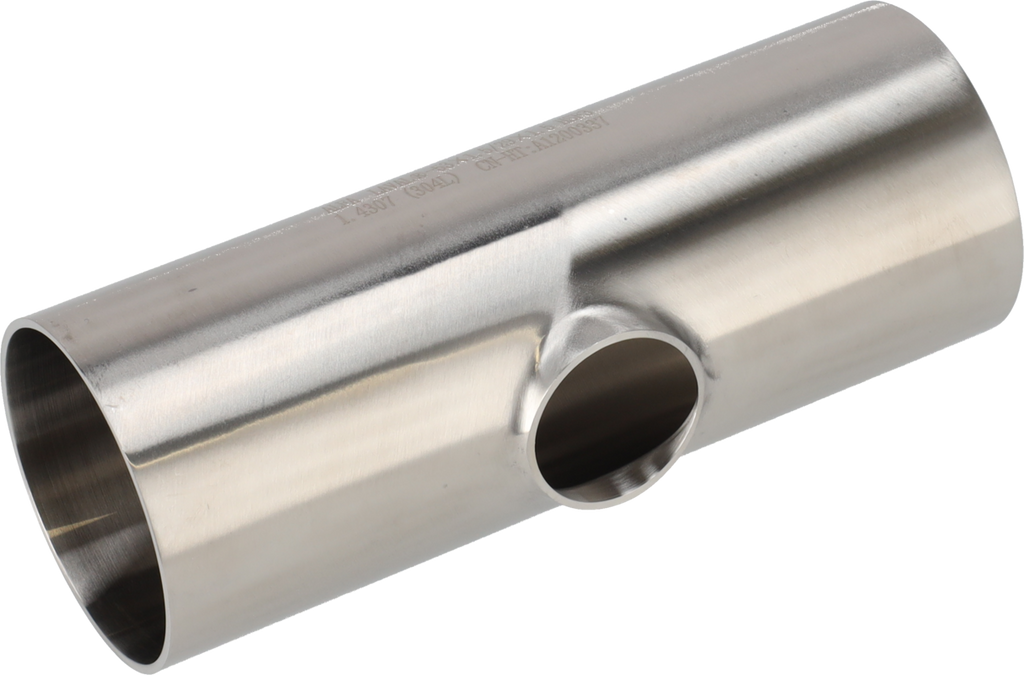

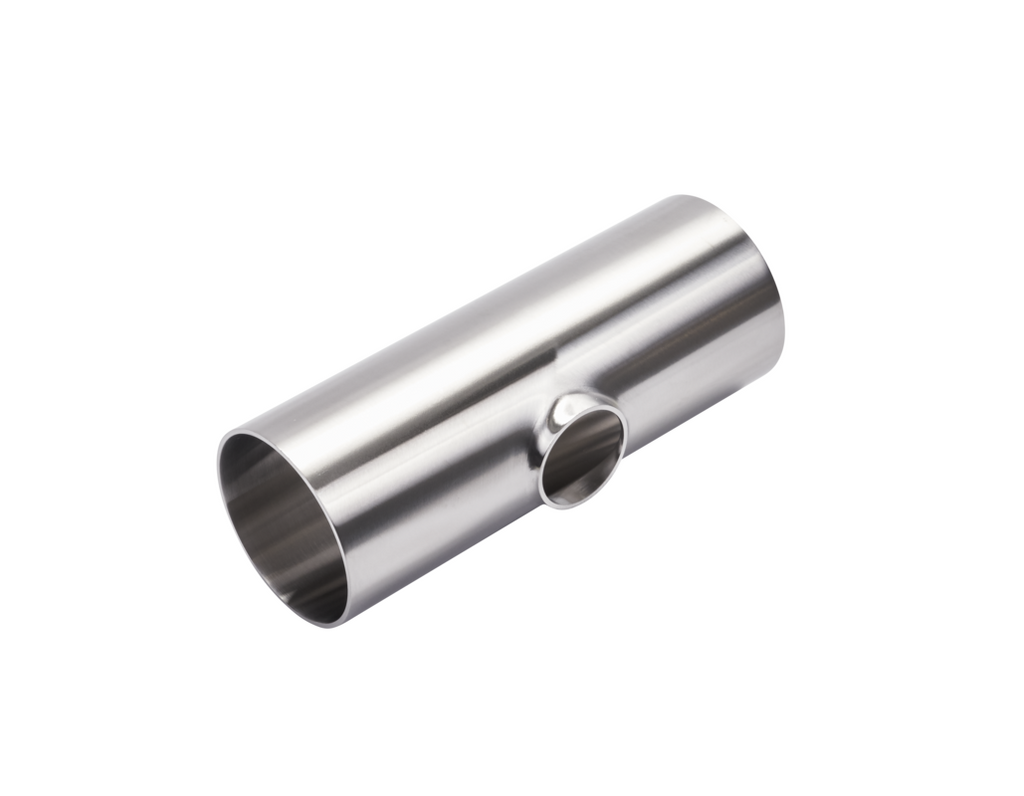

TEE RTK DN125/65 HSF3 1.4307
TEE RTK DN125/65 HSF3 1.4307
TEE RTK DN125/65 HSF3 1.4307
TEE RTK DN125/65 HSF3 1.4307
Roll over image to zoom in Click on image to zoom
TEE RTK DN125/65 HSF3 1.4307
TEE RTK DN125/65 HSF3 1.4307
TEE RTK DN125/65 HSF3 1.4307
TEE RTK DN125/65 HSF3 1.4307

TEE RTK DN125/65 HSF3 1.4307

Manufacturer:
Alfa Laval
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
Alsis code:
5026
HS Code:
73072390
Item number:
9615247223
Delivery time:
On request
  • Range: Tees
  • Product model: DIN EN 10357-A Reducing Tees Short EN 10374-A
  • Size: DN125
  • Second size: DN65
  • Material: 1.4307 (304L)
  • Finish: HSF3 (ID=0.8/OD=0.8)
  • Connection type: Weld ends
  • Standard: DIN 11852 EN 10374-A
  • Design: Reduced Tee Short and RTK
  • Item Weight: 0.1
  • Country of origin: China
Price:
Login to view price

VAT not included

Documentation

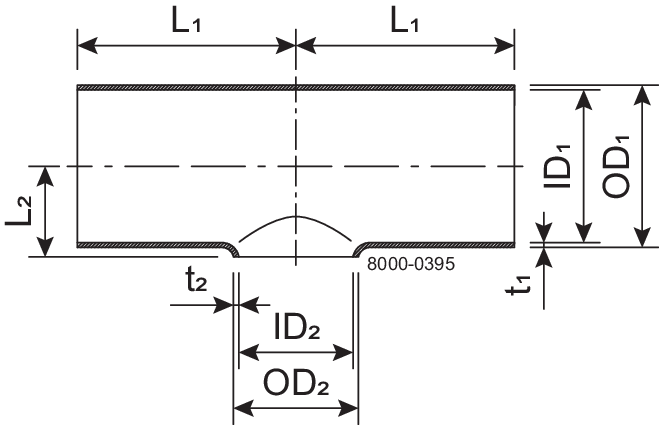

L1 (mm): 187.50
L2 (mm): 69.50
OD/ID x t: 129.00/125.00 x 2.00
OD1/ID1 x t1: 129.00/125.00 x 2.00
OD2: 70
