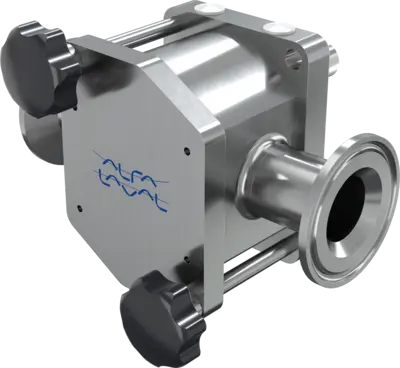

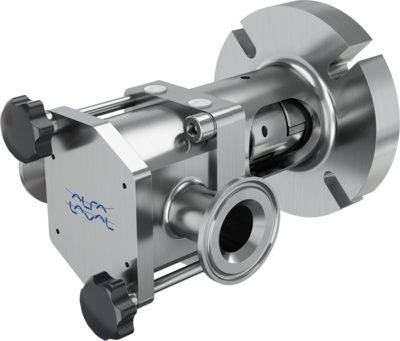

M200 - 1" Tri-Clamp (ASME BPE)
M200 - 1" Tri-Clamp (ASME BPE)
Roll over image to zoom in Click on image to zoom
M200 - 1" Tri-Clamp (ASME BPE)
M200 - 1" Tri-Clamp (ASME BPE)

M200 - 1" Tri-Clamp (ASME BPE)

Manufacturer:ALFA LAVAL
Alsis code: 5325
Item number: 8010030472
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
HS Code: 84136080
Delivery time:On request
  • Product Model: M200
  • Motor Type: Mounted Unit
  • Mounting options: Coupling & Flange for D80 Motor
  • Product seal: Stainless Steel / Carbon
  • Elastomer: FPM
  • Gears: Plain SS - 60°C
  • Port size: 1
  • Port type: Male Tri-Clamp (ASME BPE)
  • Weight: 10.1 kg
Price:
Login to view price

VAT not included

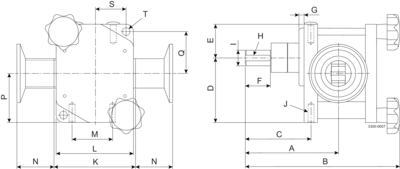

Dimension A 75.5 mm
Dimension B 132 mm
Dimension C 52 mm
Dimension D 57 mm
Dimension E 28 mm
Dimension F 20 mm
Dimension L 67 mm
Dimension K 70 mm
Dimension S 27 mm
Dimension T ø6.5 mm
Dimension H 5*3 mm
Dimension I 13 mm
Dimension J M6*12 mm
Dimension M 32mm
Dimension N 52 mm
Dimension Q 36 mm
