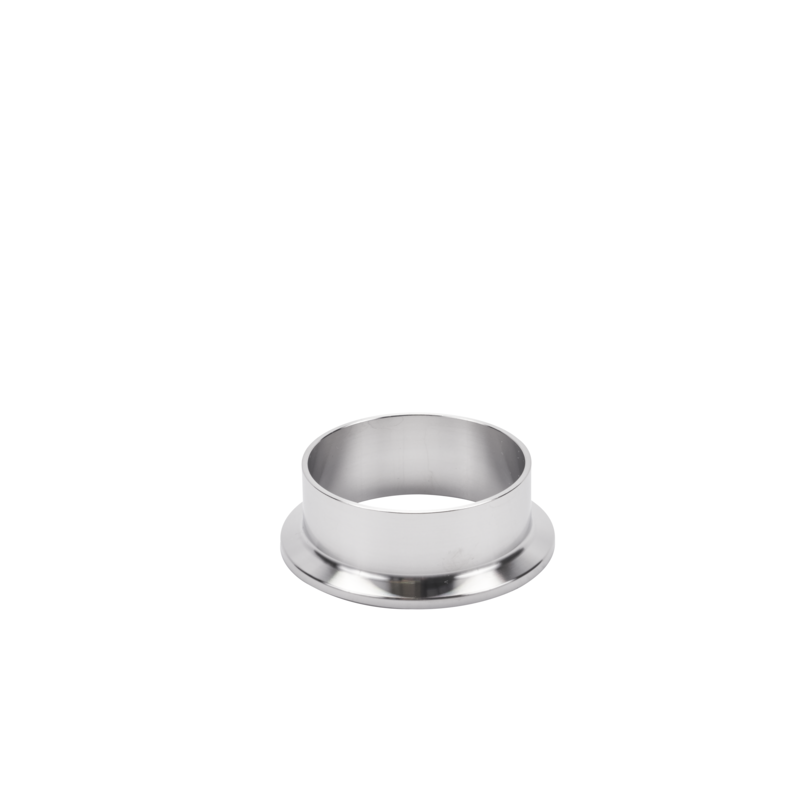

FERRULE KK DN80 HSF0 1.4404
FERRULE KK DN80 HSF0 1.4404
Roll over image to zoom in Click on image to zoom
FERRULE KK DN80 HSF0 1.4404
FERRULE KK DN80 HSF0 1.4404

FERRULE KK DN80 HSF0 1.4404

Manufacturer:
Alfa Laval
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
Product code:
5054
HS Code:
73072980
Item number:
9612156129
Delivery time:
On request
  • Range: Ferrules
  • Product model: DIN EN 10357-A Clamp Unions DIN 32676
  • Size: DN80
  • Material: 1.4404 (316L)
  • Finish: HSF0 (ID=0.8/OD=1.6)
  • Connection type: TriClamp and Weld
  • Standard: DIN 32676
  • Design: KK short
  • Item Weight: 0.22
  • Country of origin: China
Price:
Login to view price

VAT not included

Documentation

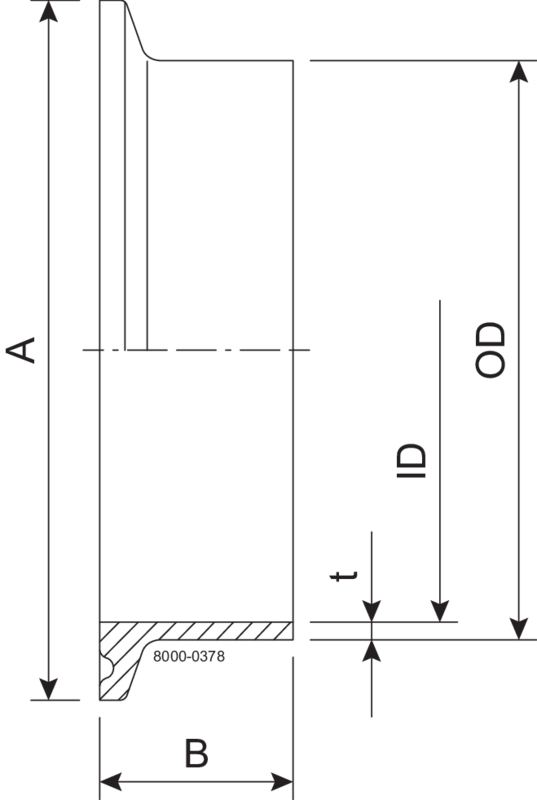

A: 106.00
B: 28.00
OD/ID x t: 85.00/81.00 x 2.00
OD1/ID1 x t1: 85.00/81.00 x 2.00
