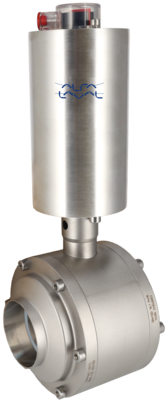

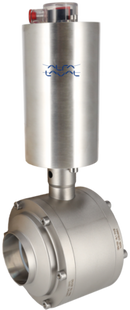

BALL VALVE SBV-ISO101-C/C-NC
BALL VALVE SBV-ISO101-C/C-NC
Roll over image to zoom in Click on image to zoom
BALL VALVE SBV-ISO101-C/C-NC
BALL VALVE SBV-ISO101-C/C-NC

BALL VALVE SBV-ISO101-C/C-NC

Manufacturer:
Alfa Laval
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
Item number:
9612645957
Delivery time:
On request
  • Product wetted steel part: 1.4404 (316L)
  • Size iso: 101.6
  • Elastomer: EPDM
  • Connection type: Clamp ends
  • Actuator function: Normally closed
  • Actuation: Pneumatic
  • Body combination: Standard actuator ø130
  • Item Weight: 33.5 kg
Price:
Login to view price

VAT not included

Documentation

Instruction Manuals

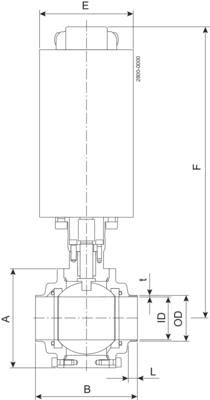

A: 195
B: 220
E: 129
F: 395
L: 15.8
T: 2
Inner Diameter: 97.6
Outer Diameter: 101.6
