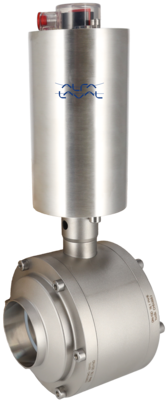

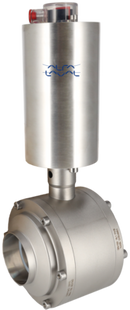

BALL VALVE SBV-DN80-W/W-NC
BALL VALVE SBV-DN80-W/W-NC
Roll over image to zoom in Click on image to zoom
BALL VALVE SBV-DN80-W/W-NC
BALL VALVE SBV-DN80-W/W-NC

BALL VALVE SBV-DN80-W/W-NC

Manufacturer:
Alfa Laval
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
Item number:
9612646320
Delivery time:
On request
  • Product wetted steel part: 1.4404 (316L)
  • Size din: DN80
  • Elastomer: FPM (Viton)
  • Connection type: Welding ends
  • Actuator function: Normally closed
  • Actuation: Pneumatic
  • Body combination: Standard actuator ø104
  • Item Weight: 8 kg
Price:
Login to view price

VAT not included

Documentation

Instruction Manuals

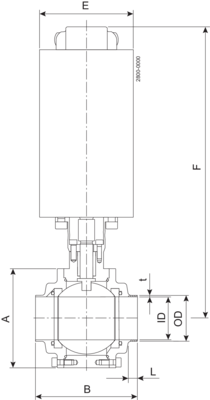

A: 159
B: 163
E: 104
F: 346
L: 9.89
T: 2
Inner Diameter: 81
Outer Diameter: 85
