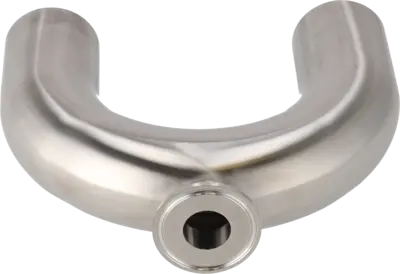

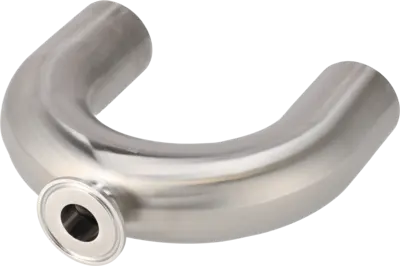

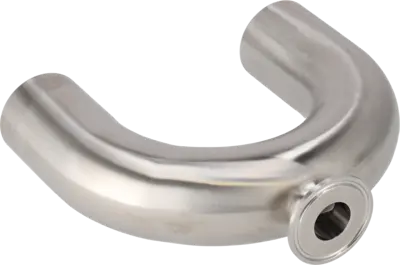

B2UMPBOA-2 1/2 X 1/2-316L-PL
B2UMPBOA-2 1/2 X 1/2-316L-PL
B2UMPBOA-2 1/2 X 1/2-316L-PL
B2UMPBOA-2 1/2 X 1/2-316L-PL
Roll over image to zoom in Click on image to zoom
B2UMPBOA-2 1/2 X 1/2-316L-PL
B2UMPBOA-2 1/2 X 1/2-316L-PL
B2UMPBOA-2 1/2 X 1/2-316L-PL
B2UMPBOA-2 1/2 X 1/2-316L-PL

B2UMPBOA-2 1/2 X 1/2-316L-PL

Manufacturer:
Alfa Laval
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
Alsis code:
5016
HS Code:
7307290090
Item number:
9634037410
Delivery time:
On request
  • Range: Bends
  • Product model: Tri-Clover BPE Use-Point
  • Size: 2.5
  • Second size: 0.5
  • Material: 316L
  • Finish: SF1(PL) (ID=20/OD=32µin)
  • Connection type: Weld and TriClamp and Weld
  • Standard: UltraPure
  • Design: B2UMPBOA
  • Item Weight: 1.54
  • Country of origin: China
Price:
Login to view price

VAT not included

Documentation

A: 146.10
B: 190.50
C: 193.70
OD/ID x t: 63.50/60.20 x 1.65
OD1/ID1 x t1: 63.50/60.20 x 1.65
OD2: 12.7
