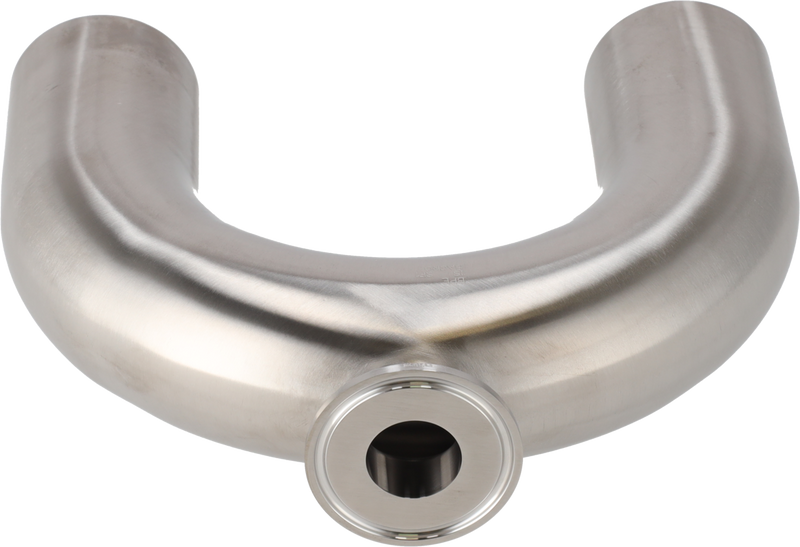

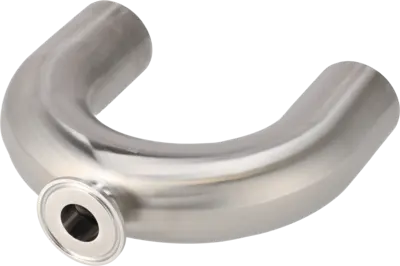

B2UMPBOA-1 1/2 X 3/4-316L-PL
B2UMPBOA-1 1/2 X 3/4-316L-PL
B2UMPBOA-1 1/2 X 3/4-316L-PL
B2UMPBOA-1 1/2 X 3/4-316L-PL
Roll over image to zoom in Click on image to zoom
B2UMPBOA-1 1/2 X 3/4-316L-PL
B2UMPBOA-1 1/2 X 3/4-316L-PL
B2UMPBOA-1 1/2 X 3/4-316L-PL
B2UMPBOA-1 1/2 X 3/4-316L-PL

B2UMPBOA-1 1/2 X 3/4-316L-PL

Manufacturer:
Alfa Laval
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
Alsis code:
5016
HS Code:
73072310
Item number:
9634037404
Delivery time:
On request
  • Range: Bends
  • Product model: Tri-Clover BPE Use-Point
  • Size: 1.5
  • Second size: 0.75
  • Material: 316L
  • Finish: SF1(PL) (ID=20/OD=32µin)
  • Connection type: Weld and TriClamp and Weld
  • Standard: UltraPure
  • Design: B2UMPBOA
  • Item Weight: 0.47
  • Country of origin: United States
Price:
Login to view price

VAT not included

Documentation

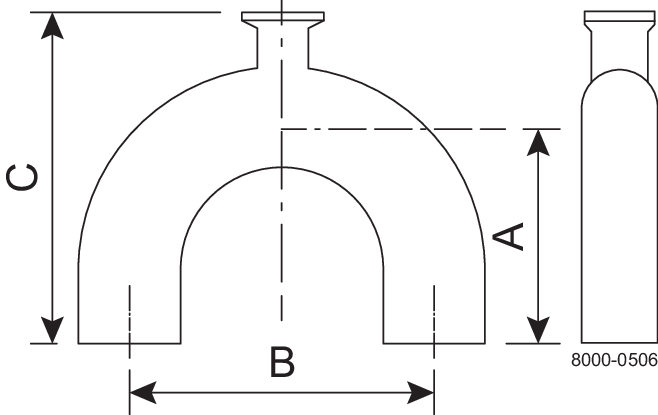

A: 114.30
B: 114.30
C: 149.20
OD/ID x t: 38.10/34.80 x 1.65
OD1/ID1 x t1: 38.10/34.80 x 1.65
OD2: 19.05
