Manufacturer:
Alfa Laval
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
Alsis code:
5016
HS Code:
7307290090
Item number:
9634001929
Delivery time:
On request

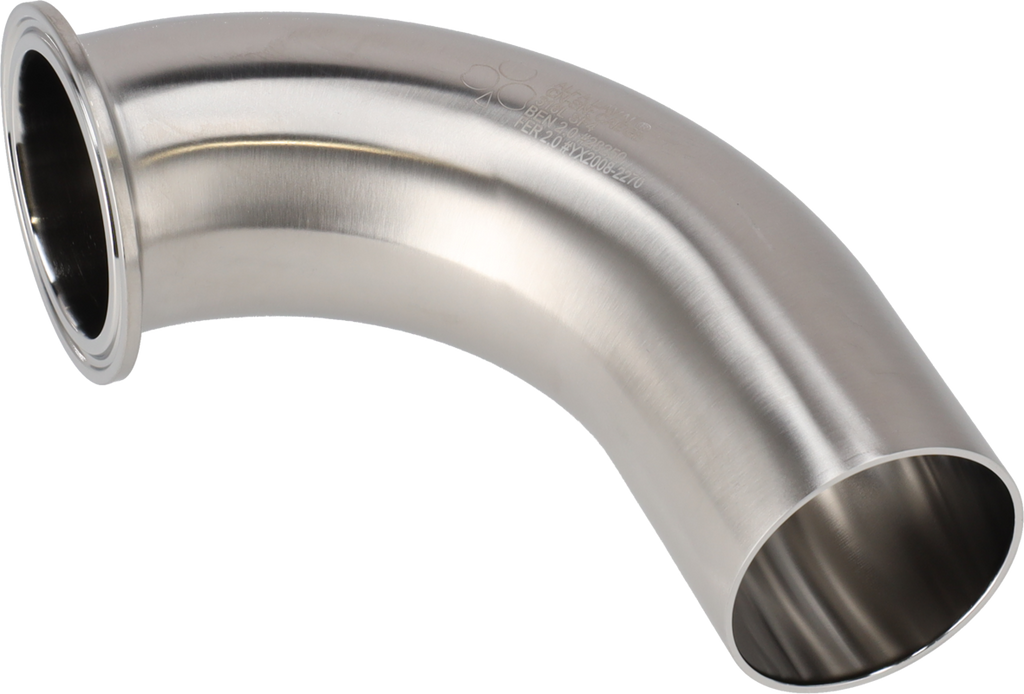

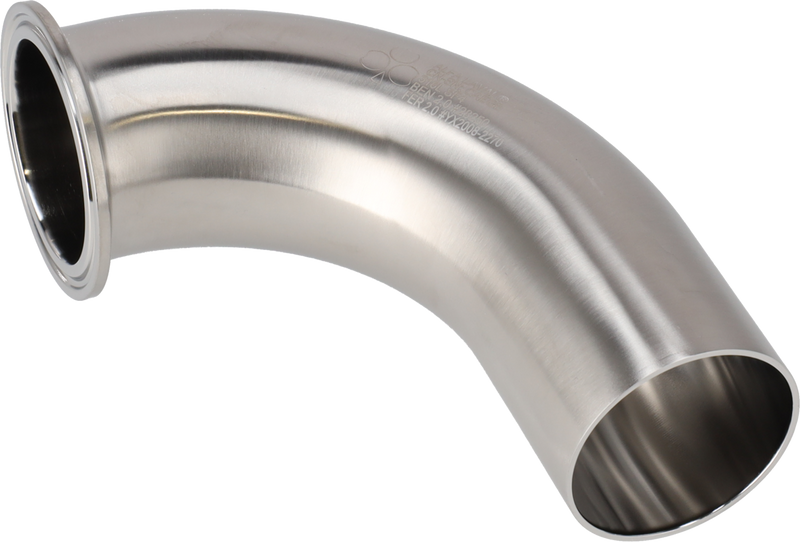

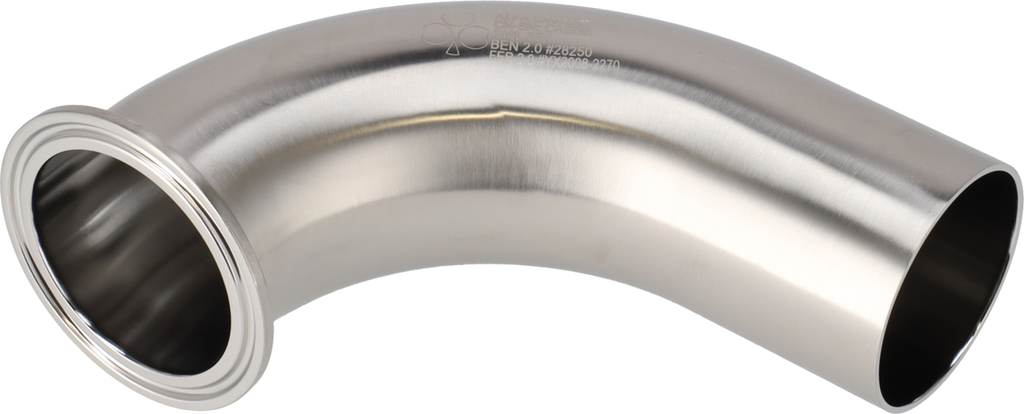

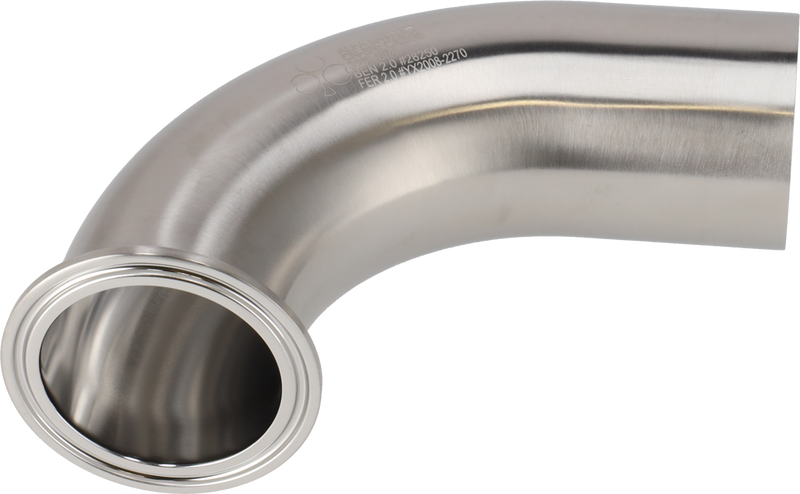

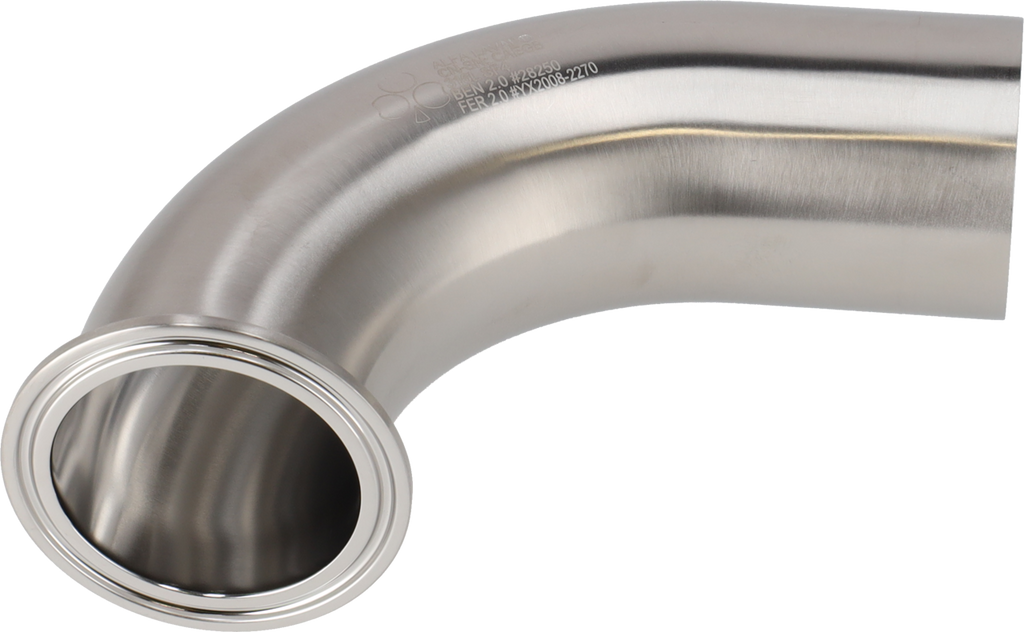

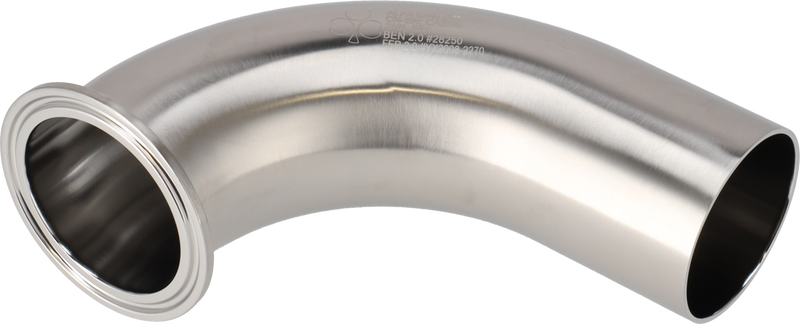

  • Range: Bends
  • Product model: Tri-Clover BPE Bends 90
  • Size: 0.75
  • Material: 316L
  • Finish: SF4(PM) (ID=15EP/OD=32µin)
  • Connection type: TriClamp and Weld
  • Standard: ASME BPE
  • Design: B2CMW
  • Item Weight: 0.1
  • Country of origin: China
Price:
Login to view price

VAT not included

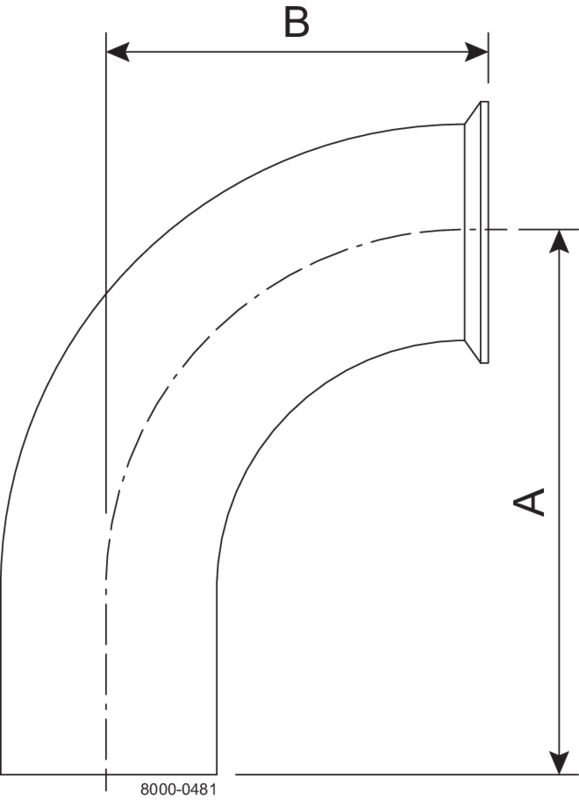

A: 76.20
B: 41.30
C: 41.30
OD/ID x t: 19.05/15.75 x 1.65
OD1/ID1 x t1: 19.05/15.75 x 1.65
