B2CMP-1-316L-PM
B2CMP-1-316L-PM
B2CMP-1-316L-PM
B2CMP-1-316L-PM
Roll over image to zoom in Click on image to zoom
B2CMP-1-316L-PM
B2CMP-1-316L-PM
B2CMP-1-316L-PM
B2CMP-1-316L-PM

B2CMP-1-316L-PM

Manufacturer:
Alfa Laval
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
Alsis code:
5017
HS Code:
7307290090
Item number:
9634002830
Delivery time:
On request
  • Range: Bends

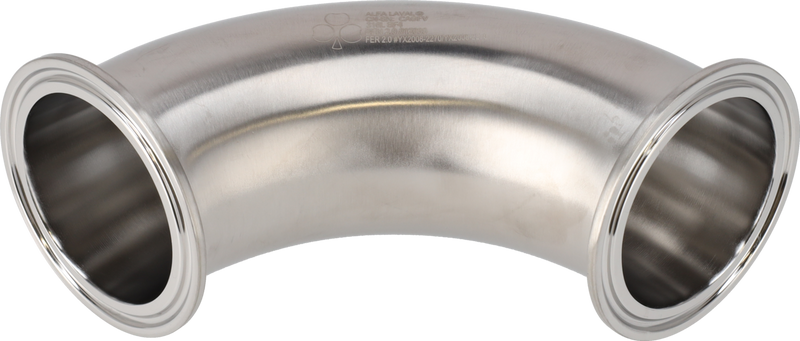

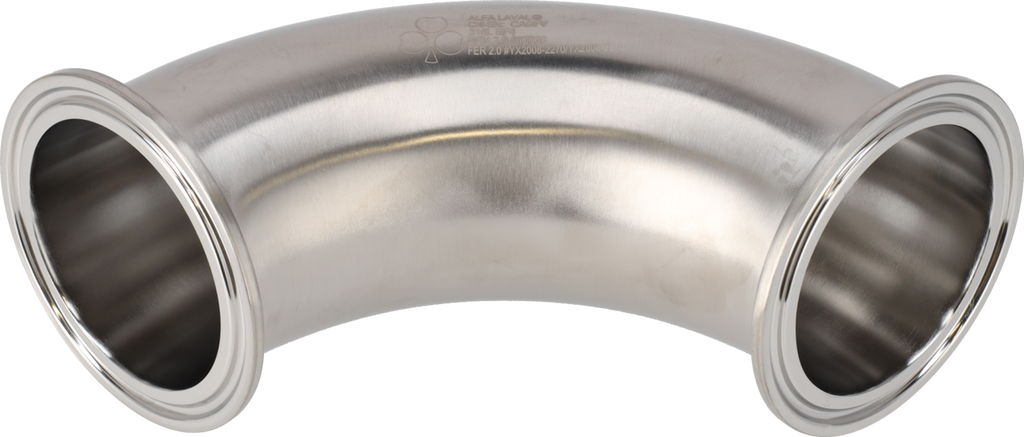

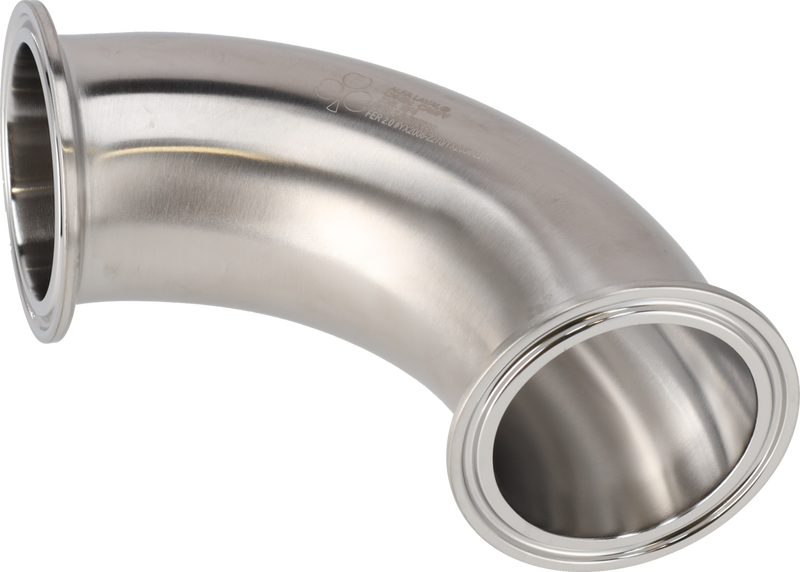

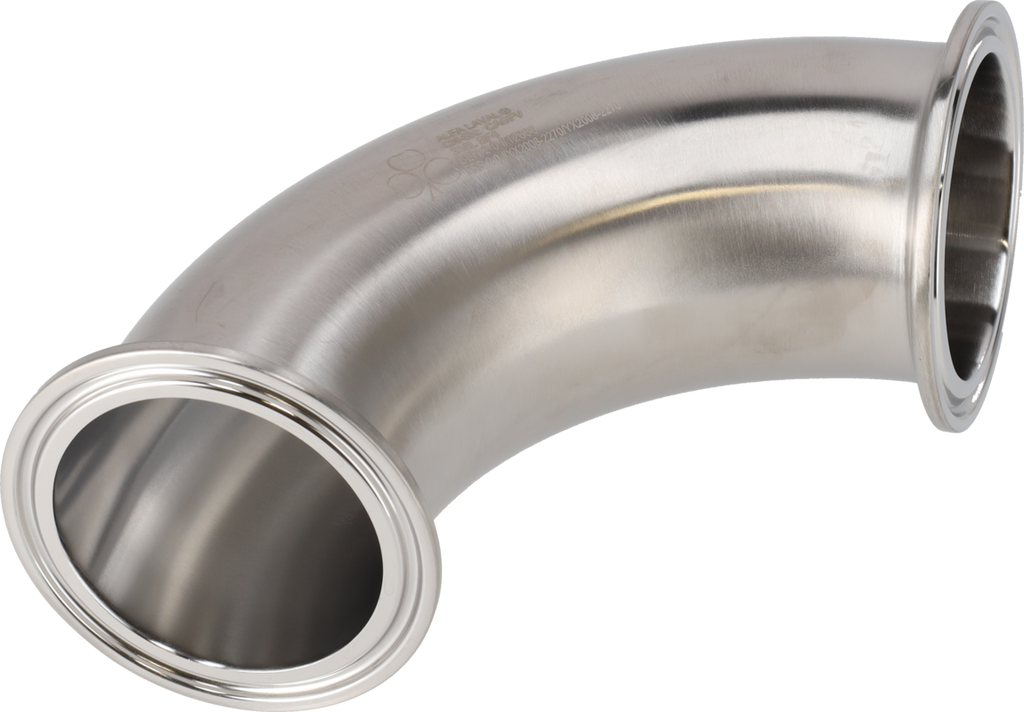

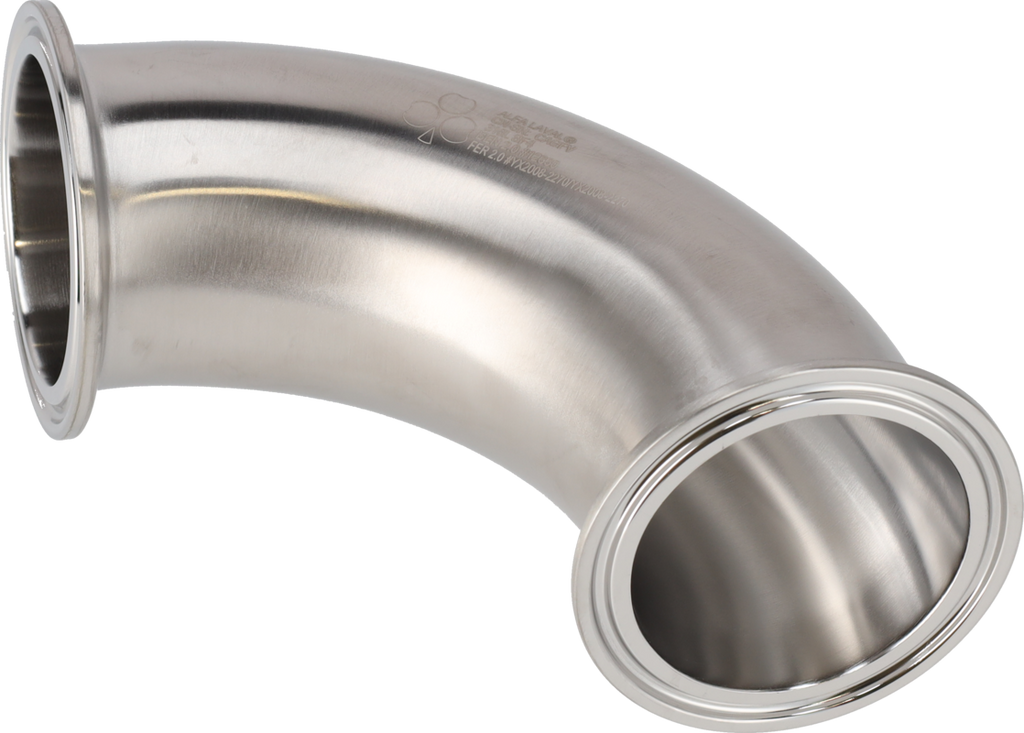

  • Product model: Tri-Clover BPE Bends 90
  • Size: 1
  • Material: 316L
  • Finish: SF4(PM) (ID=15EP/OD=32µin)
  • Connection type: Clamp ends
  • Standard: ASME BPE
  • Design: B2CMP
  • Item Weight: 0.19
  • Country of origin: China
Price:
Login to view price

VAT not included

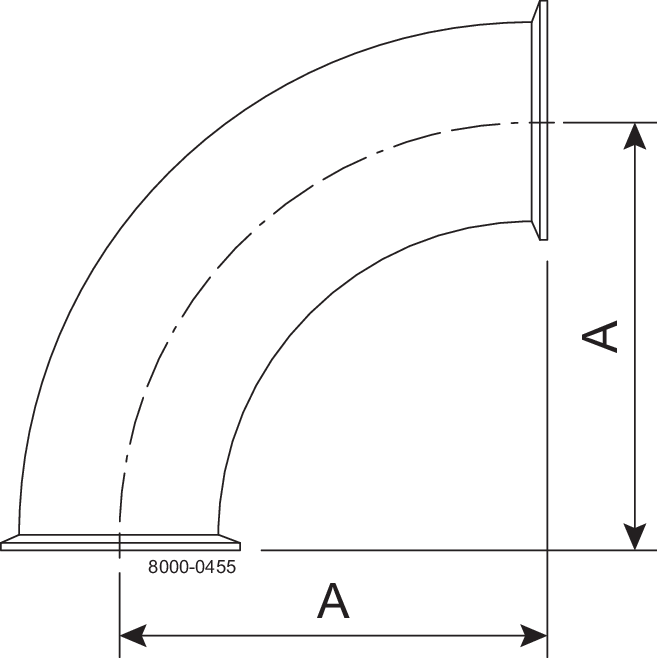

A: 50.80
OD/ID x t: 25.40/22.10 x 1.65
OD1/ID1 x t1: 25.40/22.10 x 1.65
